Machine for stitching frames of a baguette Pim Joint 5x5 pneumatic, baguette wholesale , buy a baguette, baguette cheap, Mat, buy mats
Offer type: salePublished: 31.03.2015

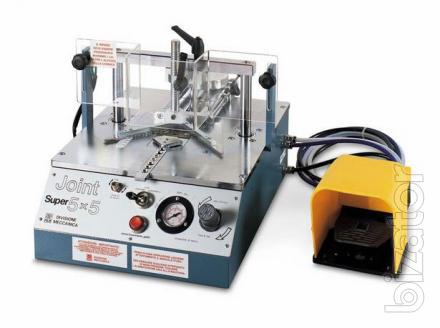

Machine for fastening the corners of the frames, equipped with logical pneumatic actuator. Operated two-position pedal: the initial push on the pedal frame presses (front trigger horizontal and vertical clamps), a further push the pedal initiates the insertion of the bracket into the current position. To work, you need a compressor with a working pressure of 8 ATM. Used to work bracket height 4-7-10-12-15. The connection angles of 90°, 120° (hexagonal) and 135° (octagonal), with a minimum cross-section of 5 × 5 and maximum h. JOINT 5×5 SUPER with adjustable pressing force and the speed of the clip. Possible choice of manual or automatic cycle of operation to check the angle before installing the brackets. Further has a device for testing normal and overlapping straps.
• Capacity for staples : 250
• The sizes of staples : mm 4-7-10-12-15
• Dimensions : cm 35x45x32
• Weight : 31 Kg
• The size of the baguette : min 5×5 mm; max 100×70 mm
• Pneumatic power supply : 8 bar
• Air consumption per cycle: 1.60 nl a 7 bar
• Functioning : manual and automatic
• Working cycle : 50 min
