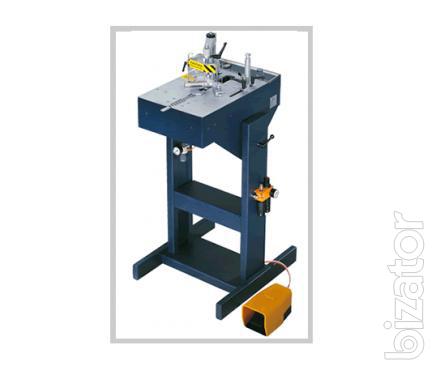

"MINIGRAF 44" - this machine is mainly designed for bonding of parts of the frame, medium and large sizes when working in the Studio, when the need for frequent and fast change the desktop size in small working space.

The machine is equipped with a floor stand, which can be used to change the position of the working surface is horizontally or at an angle, this allows the operator to work from the front or from behind. "MINIGRAF 44" is provided with a feeder of V-shaped brackets mounted on a moving carriage, which is manually operated by the operator, and which is easily recharged even when operating in an inclined position with a baguette of any profile, it allows you to quickly place the V-brackets to the desired position.

The principal difference from the MINIGRAF 4 is the presence of vertical clamp of special construction, which is adapted to work with complex profiles.

Dip first pedal activates horizontal clamps, and then vertical, while fixing the position of the mechanism of insertion of the straps to ensure perfect mating of the frame. Insert staples is activated by pressing the button located on the handle on the right side of the working surface of the machine.

For the model "MINIGRAF 44" suitable brackets Alfamacchine Power Twist, ( step by step in a baguette, brace tightens even more angle ).

The kit included:

• Fixed or removable magnetic L-shaped and round pressure nozzles that fit any profile.
• Foot pneumatic pedal with dual function, allowing separate control of the horizontal and vertical clamping of the frame.
• Advanced horizontal pressure to create a perfect joint of helping to connect the parts of the frame. Gear levers on the head clamp planted in the spring and movable. At the time of action of the clamp, billet baguette pulled together in the corners even more.
• Pneumatic charging valve, opening the cassette V-shaped brackets for rapid reloading.
• Floor stand.
• Adjustable tilt limiters.
• Interchangeable heads for fastening brackets 7, 10, 15 mm.
• Air-oil the filter.

To work on the machine, you need a compressor with a working pressure of 50-80 Psi.
