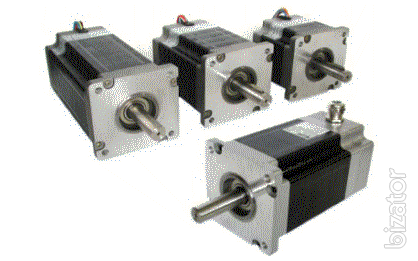

High torque 4.2” (110 mm) flange step motors MT42FN
Offer type: salePublished: 19.05.2008
| Seller: |  Babunova Larysa |
| Phones: |  ++39 0371 412318 Show phone |
- NEMA motor flange: 4,2” (110 mm);
- 11,5-30,0 Nm (Bipolar holding torque);
- 9,9 А, 10,6 А, 14,1 А, 15,5 А parallel connection;
- 4,9 А, 5,2 А, 6,0 А, 7,7 А serial connection;
- Step angle: 1.8° ±5%;
- Rotor inertia: 5500 - 16200 gm*cm2;
- Presetting of the encoder assembly;
- 8 lead wires of 400 mm;
- Protection: IP30 (IP54 for motor with terminal box option);
- Ambient temperature: - 40 ~ + 55 ° C;
- Insulation class: B, 130 °C;
- Dimensions mm: 110x110x99, 110x110x150, 110x110x201.
Data sheet - http://www.everelettronica.it
Skype: Larysa Babunova - EVER
