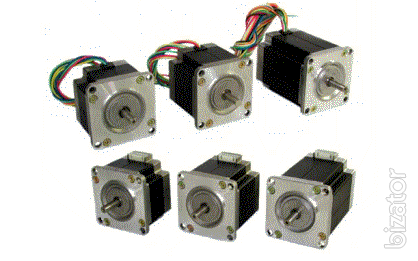

High torque, low noise 2.3’’ (56 mm) flange step motors MT23AK
Offer type: salePublished: 19.05.2008
- NEMA motor flange: 2.3” (56 mm);
- 0,4 –:- 4,6 Nm (Bipolar holding torque);
- 0,4 А, 1,5 А, 3,3 А, 3,5 А, 4,6 А (Phase current);
- Step angle: 1.8° ±5%;
- Rotor inertia: 0,150 –:- 0,440 кg*cm2;
- Presetting of the encoder assembly;
- lead wires of 300 mm;
- Protection: IP30;
- Ambient temperature: - 20 ~ + 50 ° C
- Insulation class: B, 130 °C
- Dimensions mm: 56x56x42; 56x56x54; 56x56x76.
Data sheet - http://www.everelettronica.it
