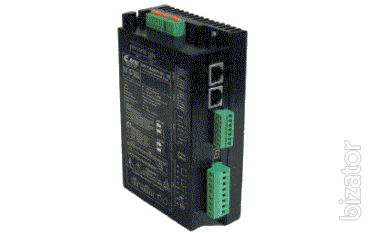

SW1x4080xx61 SlimLine - Low Cost - SW1 Drives integrates PLC
Offer type: salePublished: 07.04.2010
| Seller: |  Babunova Larysa |
| Phones: |  ++39 0371 412318 Show phone |
SW1x4080xx61 Microstepping Full Digital Software Controlled Driver
Technical characteristics
• Power supply : 48 –:- 140 Vdc (SW1D4080xx61-00);
36 –:- 100 Vac (SW1A4080xx61-00);
• Phase current : 1,0 –:- 8,0 Arms (1,40 –:- 11,28 Apeak);
• Driver type : bipolar chopper;
• Chopper frequency : 40 kHz;
• Step angle : full step, 1/2, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128, sinusoidal waveform;
• Protections : overcurrent, under/overvoltage DC bus, phase/phase phase/ground shortcircuit, overtemperature;
• Digital inputs : n. 4 optoisolated 5 Vdc line-driver (200 kHz), or 24 Vdc PNP;
• Digital output : n. 2 optoisolated, 24Vdc 100mA;
• Analog input : n. 2 ±10 Vdc;
• Interface : RS232/485 (modbus) link / CANopen ;
• User settings : n. 8 + 4 dip-switches for node ID and USER’s settings;
• Status display : 7 segments + dot leds display;
• User variables : programming through fiedlbus or serial interface;
• Connections : power supply, motor, digital I/O, analog input, fieldbus or serial interface;
• Temperature : operating from 0°C to 50°C, storage from 0°C to 55°C;
• Umidity : 0% –:- 90%;
• Protection class : IP20;
• Dimensions : 165,0 x 97,5 x 54,3 mm (SW1D4080_____);
165,0 x 97,5 x 62,3 mm (SW1A4080_______);
• Weight : 680 g. (SW1D4080_____) и 900 g. (SW1A4080_______).
export-ru@everelettronica.it
Skype: Larysa Babunova - EVER
