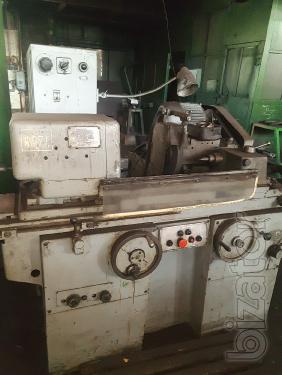

Universal cylindrical grinding machine 3Б12

Offer type: salePublished: 06.06.2020
Price:45 000 UAH
Company:ChP
Seller:Igor' Aleksandrovich
Phones:
Show phone
Write a message
Address:Kharkivs'ka Oblast', Kharkiv, Ukraine

Universal cylindrical grinding machine 3Б12. Working with test.

Universal cylindrical grinding machine 3Б12 is designed for grinding external and internal cylindrical and conical surfaces in terms of individual and small batch production.

The machine has a rotary table. It gives the ability to grind not only cylindrical, conical and flat surface.

Thanks to the front swivel and swivel wheelhead can be sanded steep conical outer and inner surface.

Wheelhead is composed of two parts. The upper part of the wheelhead can move relative to the lower (top of saddle). This gives you the opportunity to grind grinding wheel periphery circle the end of the part fixed in the Chuck.

The machine 3Б12 can be sanded in fixed centers and in Chuck.

The machine can perform the following processing:

· longitudinal and mortise grinding under manual control until it stops;

· longitudinal grinding to stop with transverse automatic feed, accessed by the reverse of the table;

· grinding end surfaces of the periphery of the circle.

The machine can handle shaft sizes from 8 to 200 mm length from 100 mm to 500 mm and hole diameter from 20 to 50 mm long up to 75 mm.
