LW1D2042N081 SlimLine - Low Cost - LW1 “clock and direction” drives

Offer type: salePublished: 07.04.2010
Seller:Babunova Larysa
Phones:
Show phone
Write a message

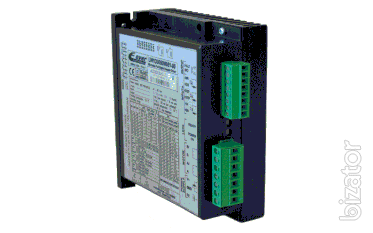

LW1D2042N081 Hardware Controlled Full Digital Microstep Driver of 2/4 phases step motors
Technical Characteristics
• Power supply : 24 –:- 36 Vdc;
• Phase current : 0.2 –:- 4.2 Arms (0.3 –:- 6.0 Apeak);
• Driver type : bipolar chopper;
• Chopper frequency : 40 kHz;
• Step angle : full step, 1/2, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128, 1/256,
1/5, 1/10, 1/25, 1/50, 1/125, 1/250, sinusoidal waveform;
• Protections : overcurrent, DC bus under/overvoltage, phase/phase and phase/ground
shortcircuit, overtemperature;
• Digital inputs : # 3 optocoupled 5 Vdc, NPN, PNP or line-driver (300 KHz);
• Digital output : # 1 optocoupled, 24Vdc 100mA, Fault, transistor output;
• Function modality : clock / direction / enable or clockUP / clockDOWN / enable;
• Current reduction : automatic (enabled by user dip-switch);
• User settings : by mean of # 8 dip-switches + 3 jumpers;
• Status display : power-on green led, fault green led;
• Connections : power supply, motor, digital I/O, earth;
• Temperature : operating 0°C –:- 50°C, storage 0°C –:- 55°C;
• Umidity : 0% –:- 90%;
• Protection class : IP20;
• Dimensions : 100.0 x 74.0 x 37.0 mm;
• Weight : 250g.
